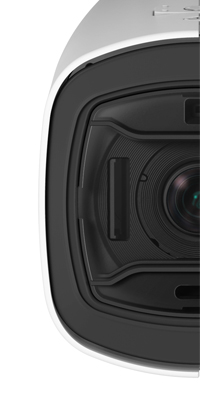

Canon VB-M740E


Keep every outdoor angle covered



  • A versatile bullet camera for high quality images day or night
  • Superb low light performance and ultra wide coverage
  • Outdoor-ready with additional environmental protection
  • Enhanced bandwidth management and bit rate control
  • Easy installation with remote set up and simple cable connections

Детални карактеристики

Погледнете подетални информации за Canon VB-M740E

A versatile bullet camera delivering high quality images day or night

Protect your site with high quality, detailed images day and night thanks to a 1.3 MP high sensitivity CMOS sensor and true Day and Night switching. The VB-M740E also features image enhancing Haze Compensation, which automatically adjusts image contrast to bring environments with fog, haze or smog into clearer view.

Superb low light performance and ultra wide coverage

The wide aperture f/1.2-1.8 Super UD lens with 2.4 x optical zoom delivers bright clear images even in low light environments, while the ultra wide 113.4° horizontal angle of view is ideal for monitoring wider areas. The IR Corrected lens not only provides clean sharp images day or night but also improves low light performance. Minimum subject illumination is 0.02 lux (colour) to 0.001 lux (mono).

Easy installation with remote set up, simple cable connections

The VB-M740E features a simple pigtail cable connection and PTRZ support, which helps reduce installation times and cost by allowing installers to remotely configure camera zoom and focus using a PC. Operators can also easily identify alarming situations thanks to an industry leading range of inbuilt intelligent detection functions, which can automatically activate recording. These include additional Intruder Detection, which identifies moving objects entering a specified area.

Outdoor-ready with additional environmental protection

The VB-M740E is fully outdoor ready with extensive weatherproofing and environmental protection. Its robust construction and innovative design means that it is also compliant with NEMA250 Type4X and IEC 60950-1/22 standards, making it ideal for use in a wide range of harsh conditions including coastal areas subject to salt damage or industrial processing sites with corrosive emissions.

Enhanced bandwidth management and bit rate control

Enjoy improved network bandwidth ma

Спецификации за производот

Дознајте повеќе за Canon VB-M740E, неговите функции и можности.


Ефикасна мрежна обработка

Digic DV III

Управува со квалитетот на сликата и контролата

1.3 Mega Pixel

Висококвалитетни слики

Auto DayNight

Отстранлив IR филтер

Intelligent Function

Анализа на видео содржини

Intrusion Detection

Заштита на зона

Power over Ethernet

Напојување преку Ethernet


Дополнителна контрола на пропусниот опсег

SD Card

Снимање на уреди за складирање


Управување со повеќе камери

  • Главен уред VB-M740E
  • CD-ROM за поставување
  • Безбедносна жица и завртка за фиксирање
  • Плоча за таван и завртки за фиксирање
  • Рачвест клуч
  • Шаблон
  • Кабел за интерфејс напојување
  • I/O кабел за интерфејс
  • Водич за монтирање
  • Гаранција
  • Леток од гаранција
  • Пакување

Калкулатор за аголот на гледање (AOV)

Калкулатор за потребниот простор на дискот (RDS)

Симулатор за распоред на камери (CLS)
